Designing spaces within spaces is an artform. Zintra Double Sided Sticks helps by creating spaces in the round. Perfect for everything from in-store displays, to reception areas and break-out spaces.

Features

Acoustic

Easy Fabrication

Easy Install

Bleach Cleanable

Colour & Finish Options
Zintra 12mm Solid PET
Zintra Timber Print
Zintra Premium Material
Zintra Premium Wood
Powdercoat

Product Specifications

Description

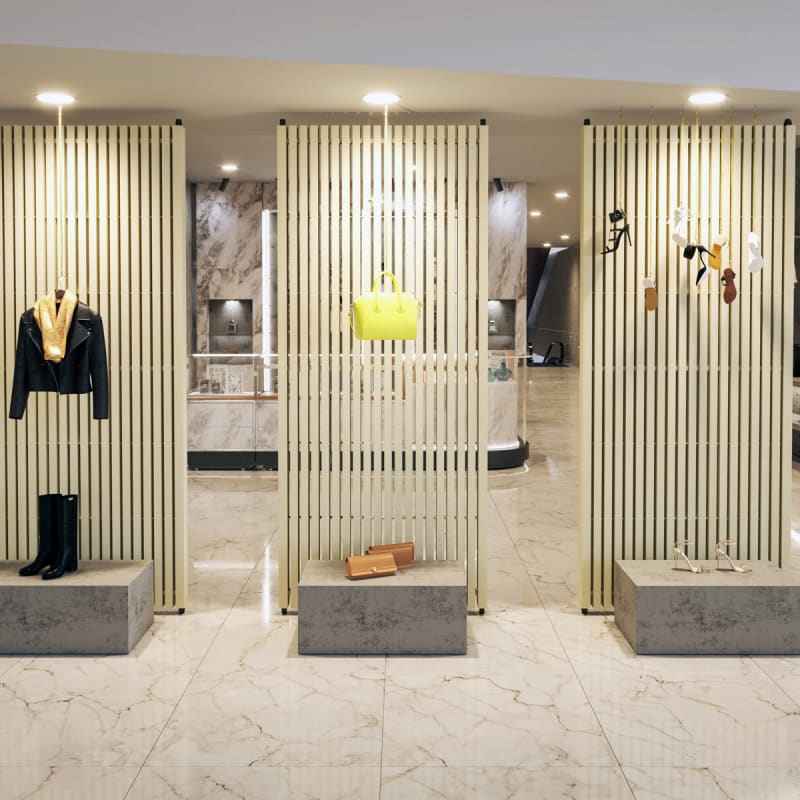

Double Sided Sticks excel at creating versatile environments. Whether for in-store displays, reception areas, or breakout spaces, they provide the perfect solution.

As the demand for space division products grows, especially in open-plan offices, Zintra Double Sided Sticks offer a seamless way to divide or create spaces without impacting walls or ceilings.

Available in both Portrait and Landscape orientations, with options for narrow or wide sticks, there's a configuration suitable for every space. Additionally, the Landscape version offers a half-height design, providing the flexibility to create modesty screens as needed. The Double-Sided Landscape Half Sets have been designed for flexible stick placement during installation, ensuring optimal screen positioning for any application.

Installation is quick and easy, with the added convenience of being able to cut on site if necessary. With Zintra Double Sided Sticks, transforming your space has never been simpler.

Choose from one of our 12 vibrant powdercoat colors (additional charge)

Dimensions

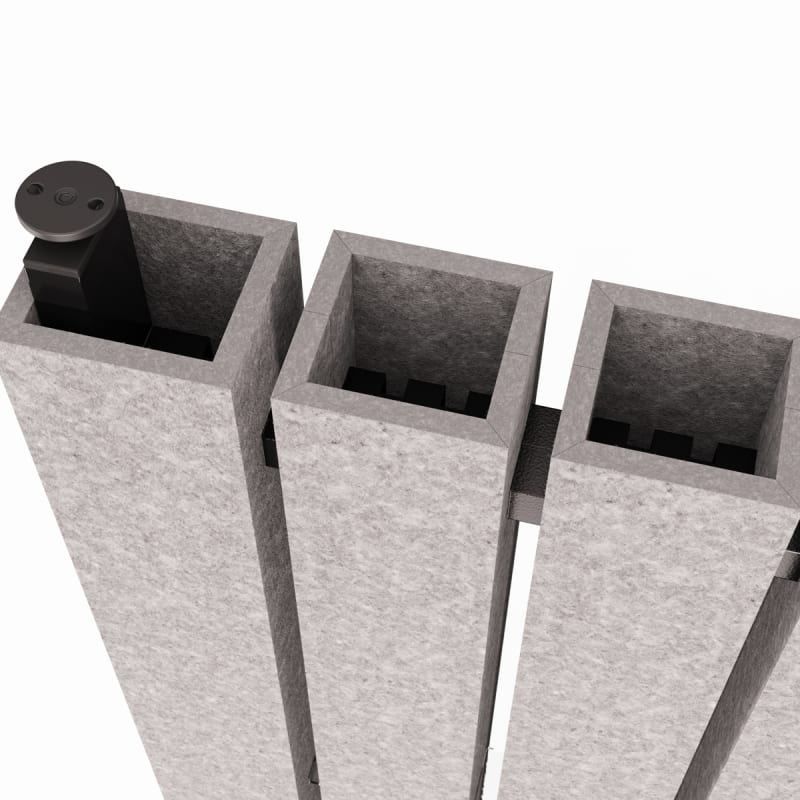

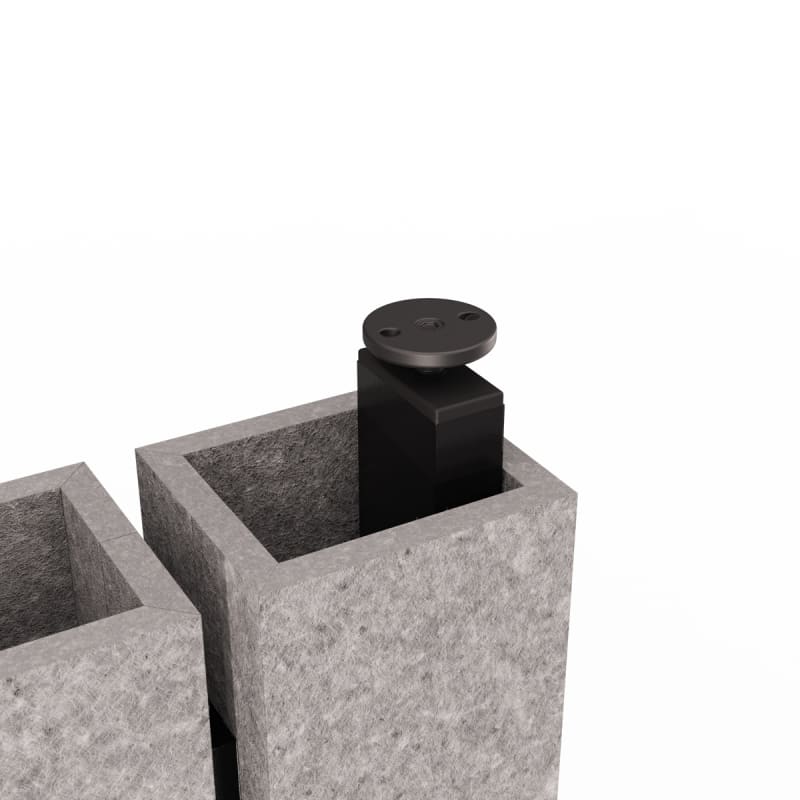

Portrait:
Narrow Set 20 pcs
2820mm (111") h x1191mm  (46.9") w x 96.5mm (3.8") d
Each Stick Width 42mm  (1.66")

Wide Set 10pcs
2820mm (111") h x1191mm  (46.9") w x 96.5mm (3.8") d
Each Stick Width 102mm (4")

Landscape Full Height:
Narrow Set 40 pcs
2820mm (111") h x1219mm  (48") w x 96.5mm (3.8") d
Each Stick Width 42mm  (1.66")

Wide Set 20 pcs
2820mm (111") h x1219mm  (48") w x 96.5mm (3.8") d
Each Stick Width 102mm (4")

Landscape Half Height:
Narrow Set 20 pcs
1174mm (46.2") h x1219mm  (48") w x 96.5mm (3.8") d
Each Stick Width 42mm  (1.66")

Wide Set 10 pcs
1174mm (46.2") h x1219mm (48") w x 96.5mm (3.8") d
Each Stick Width 102mm (4")

NOTE: Overall Height Range (2819mm) 111"- (2920mm) 115" max.

Composition

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²

Sustainability

Zintra is made from 100% recyclable materials.

  • 60% post-consumer recycled content from PET bottles.

  • 35% pre-consumer recycled content from PET chips

  • 5% polylactic acid (PLA)

Fire Rating

ASTM-E84 – Class A classification
AS ISO 9705 – 2003 – Group 1 classification
EN-13501 – B-s2-d0 classification

Warranty

Visit FAQ for more details.

Assembly & Delivery

Ships Flat Pack

Go to the Technical Documents and download the Installation Guide for more details.

Supplied As

Flat Pack

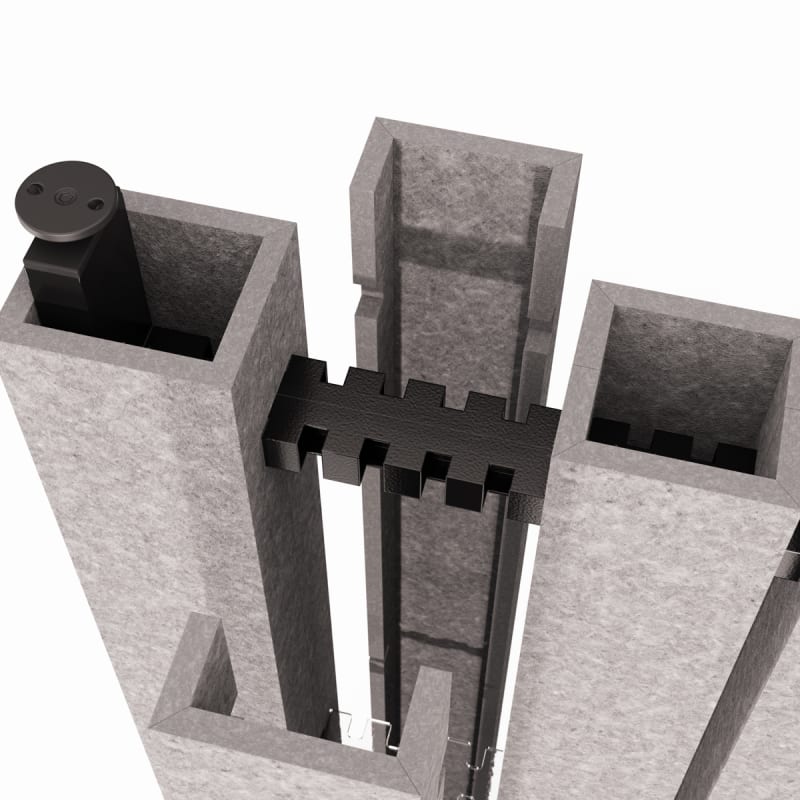

Portrait:

  • Aluminium Tube

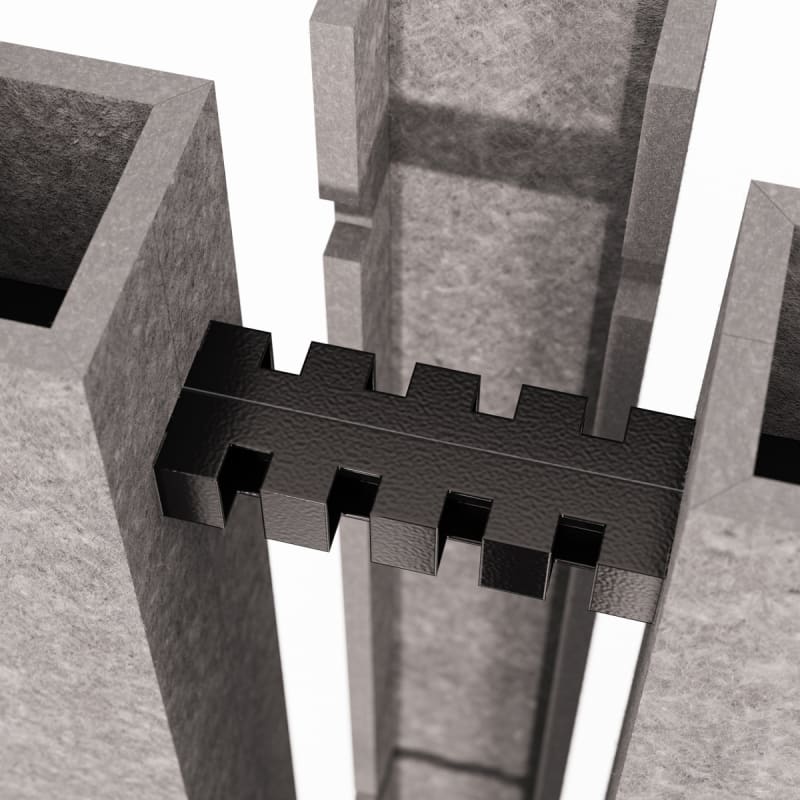

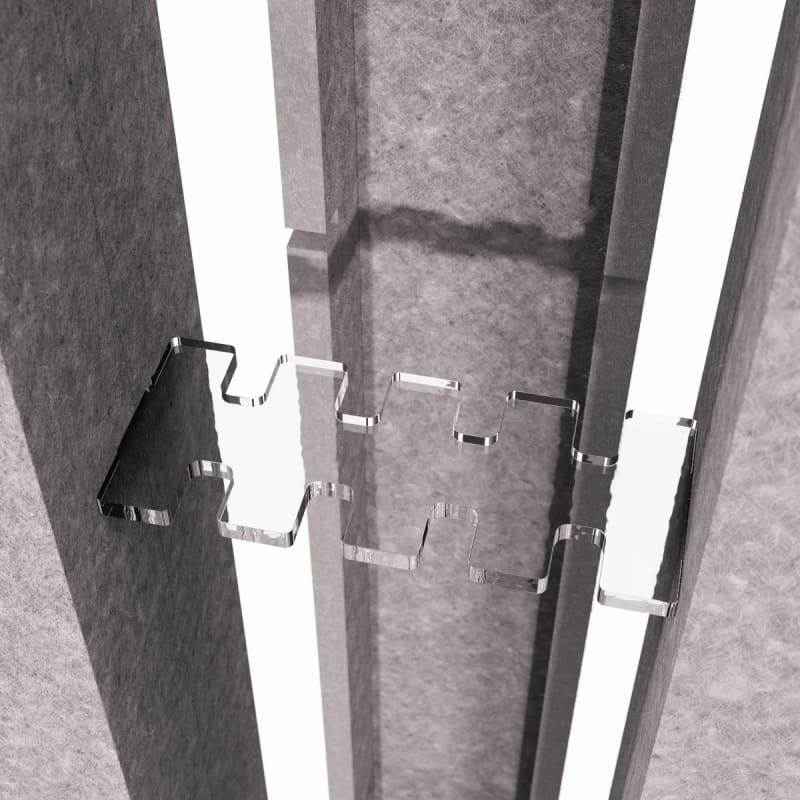

  • Acrylic Comb

  • 20 Narrow Sticks or 10 Wide Sticks

Landscape Full Height:

  • Aluminium Tube

  • Acrylic Comb

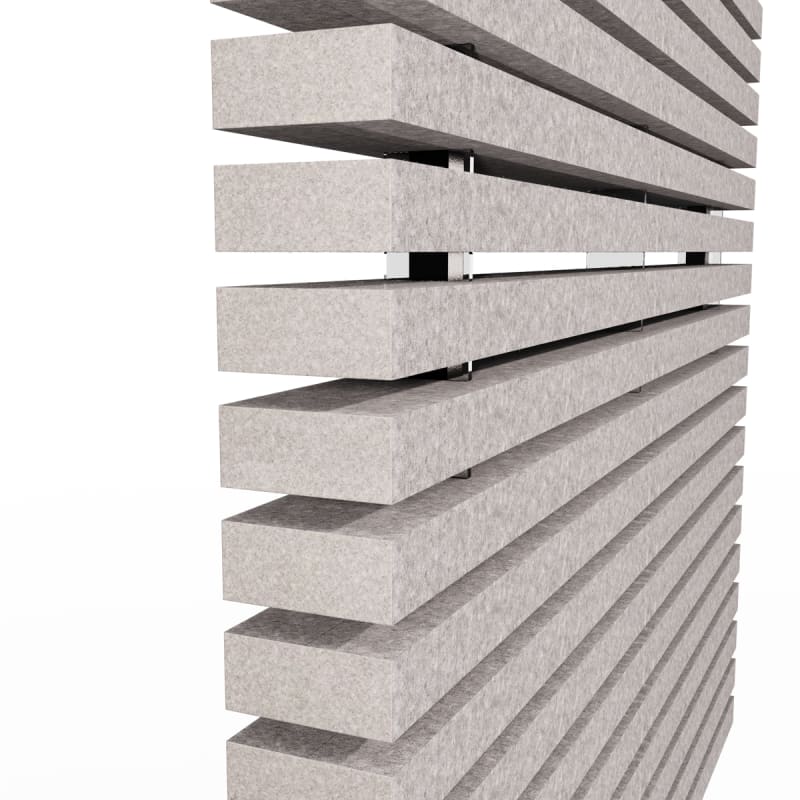

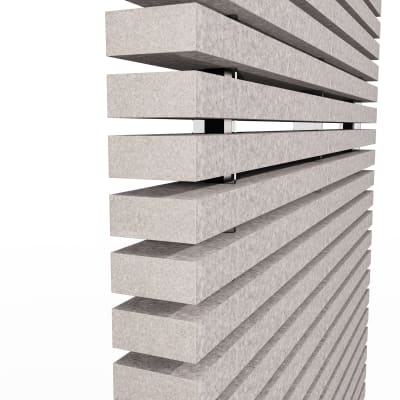

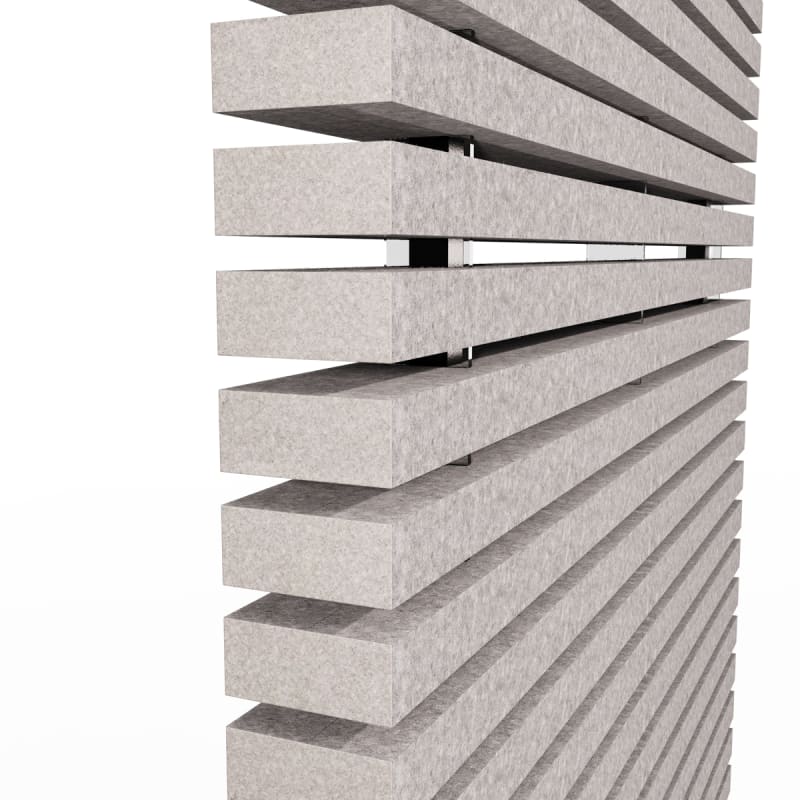

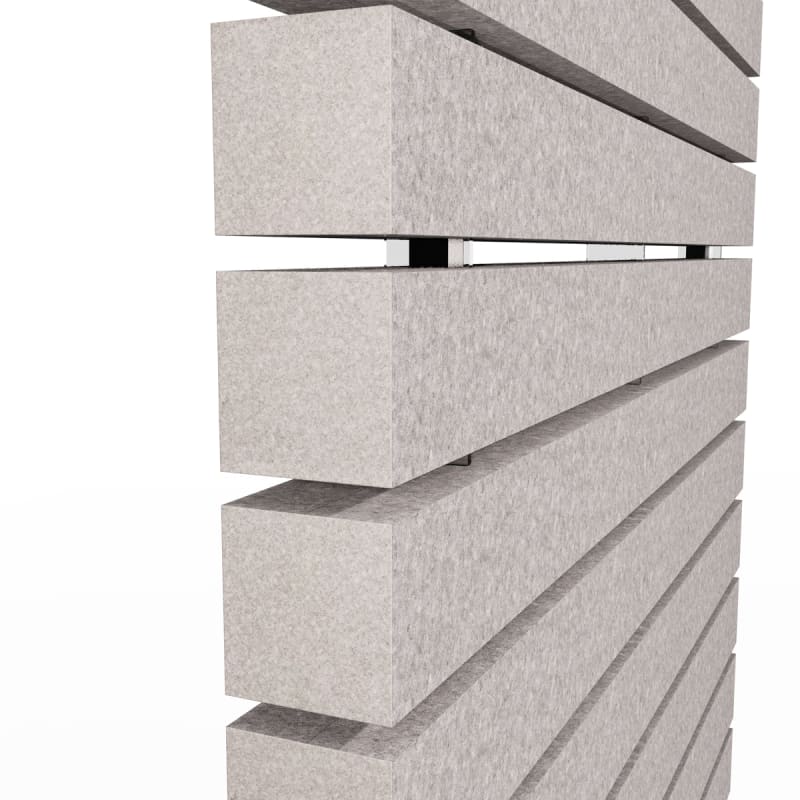

  • End Capping

  • 40 Narrow Sticks or 20 Wide Sticks

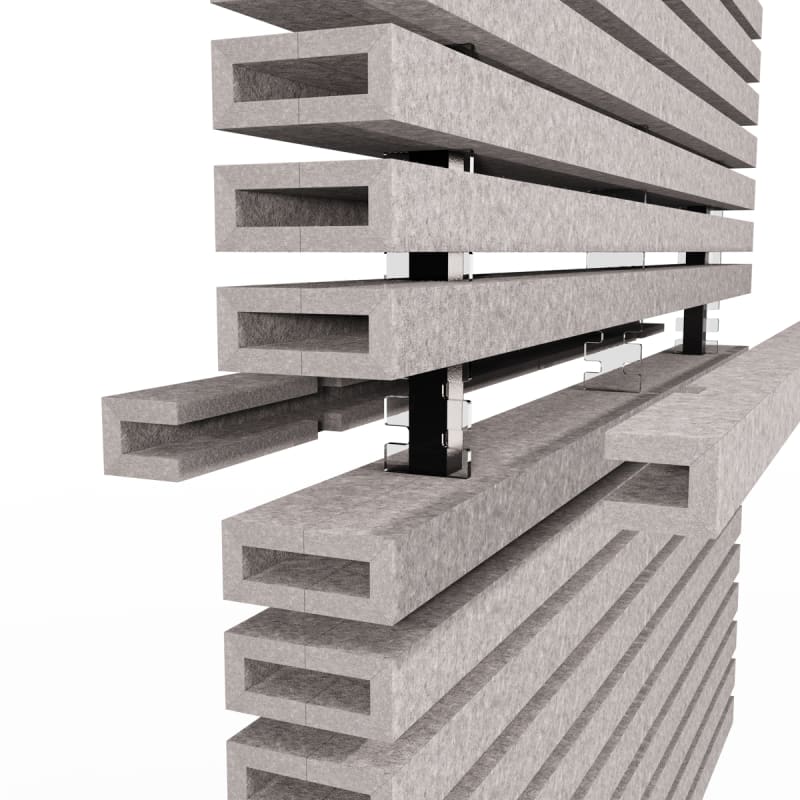

Landscape Half Height:

  • Aluminium Tube

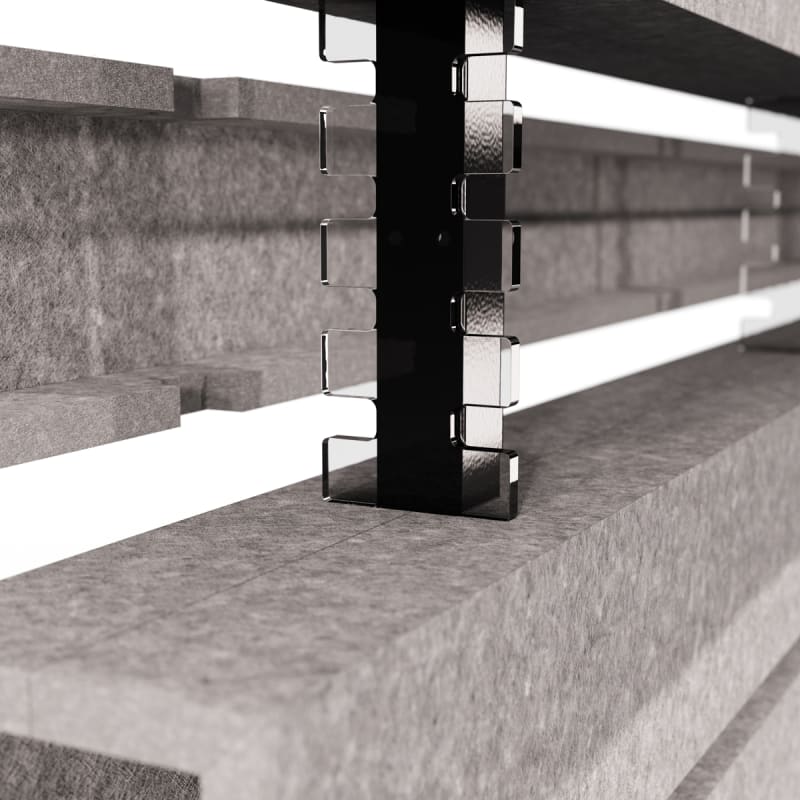

  • Acrylic Comb

  • End Capping

  • Tube Cover

  • 20 Narrow Sticks or 10 Wide Sticks

Suggested Installation

Go to Technical Documents and download the Installation Guide for more details.

How to Specify
  1. Select Stick Width - Narrow or Wide

  2. Select Landscape or Portrait

  3. Select Half or Full Height if Landscape

  4. Select Zintra Colour

  5. Quantity

Care Instructions

Vacuum to remove dust.

Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.

For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.

Always test in an inconspicuous area first and if you don't see the expected results, contact us.

Customisable

The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

Additional Comments

NRC 0.85
